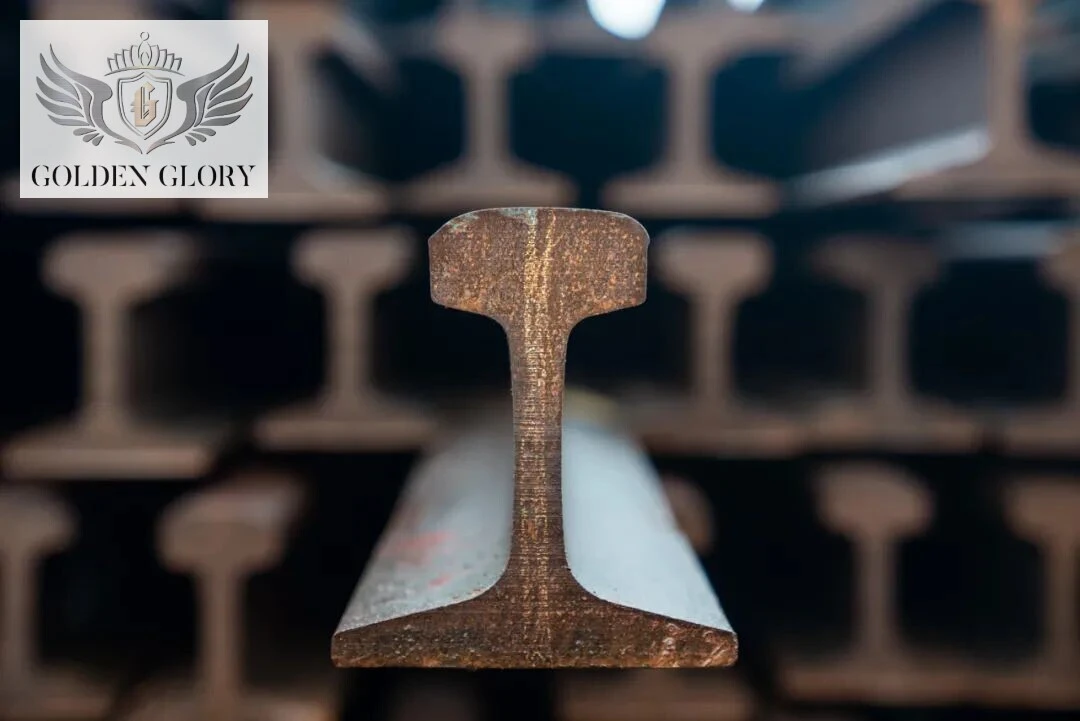

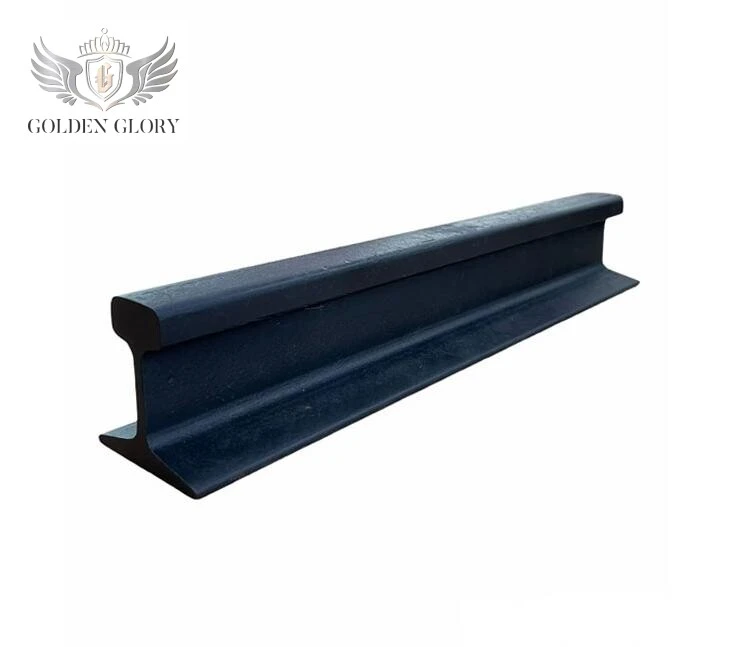

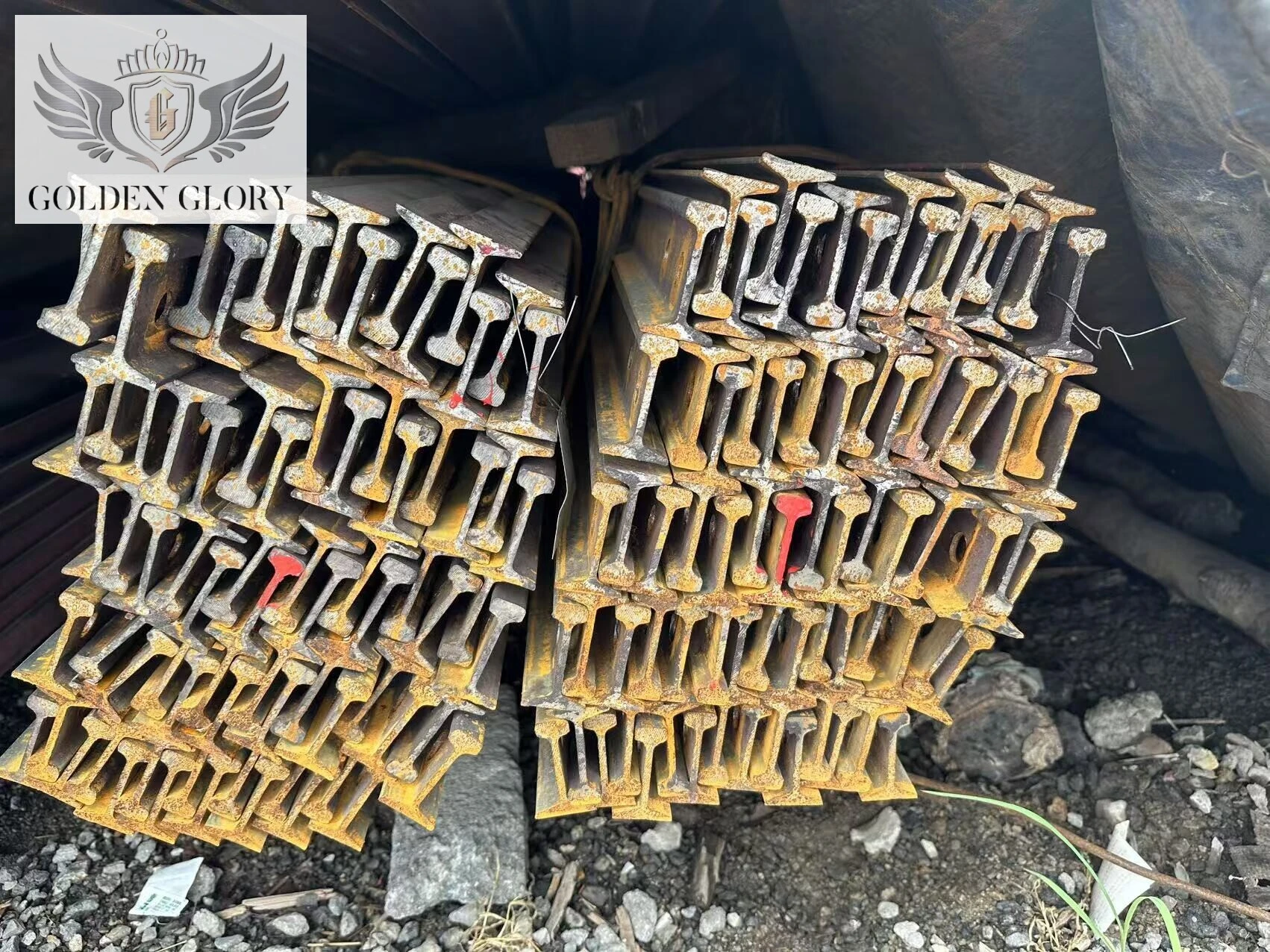

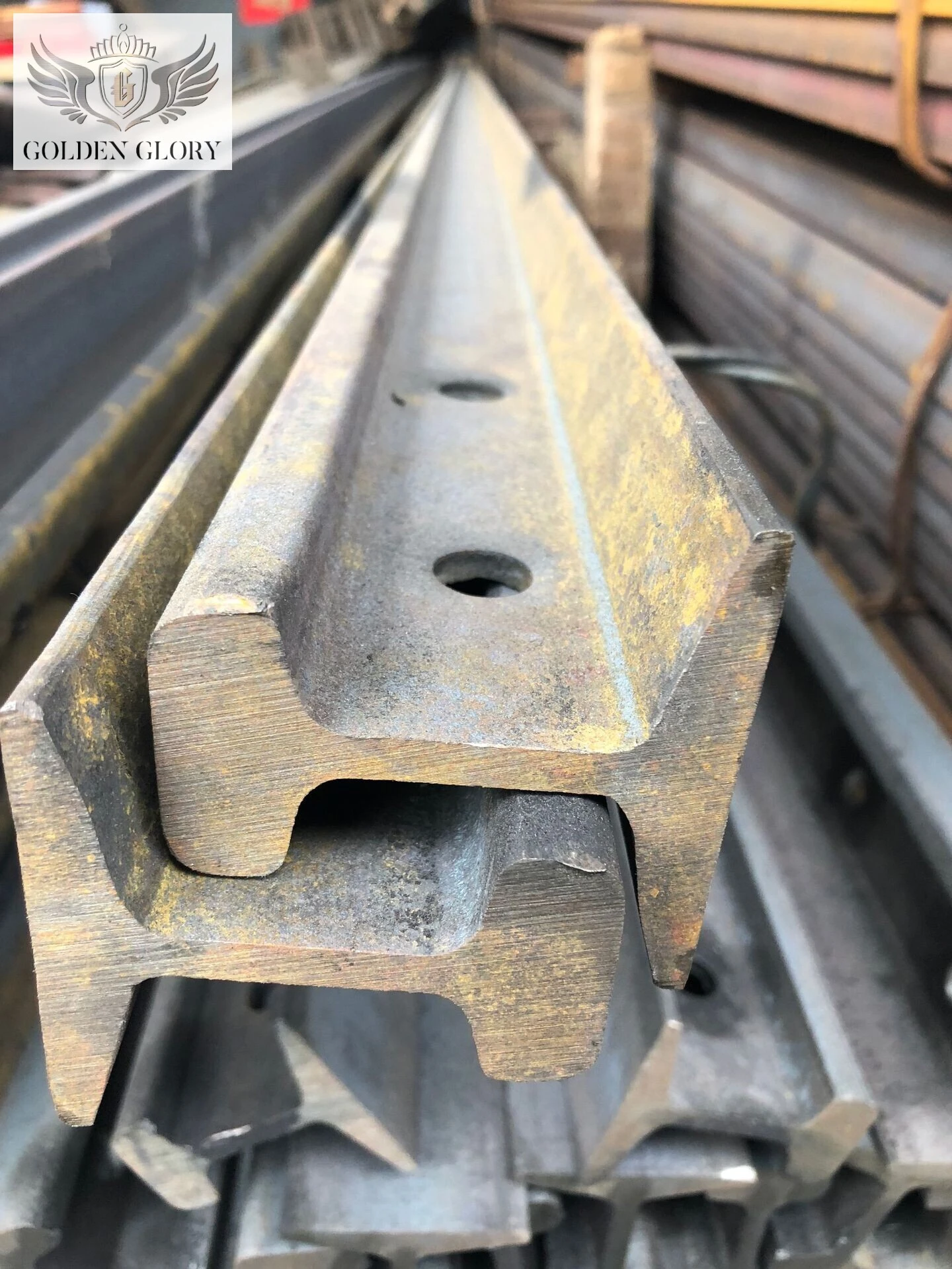

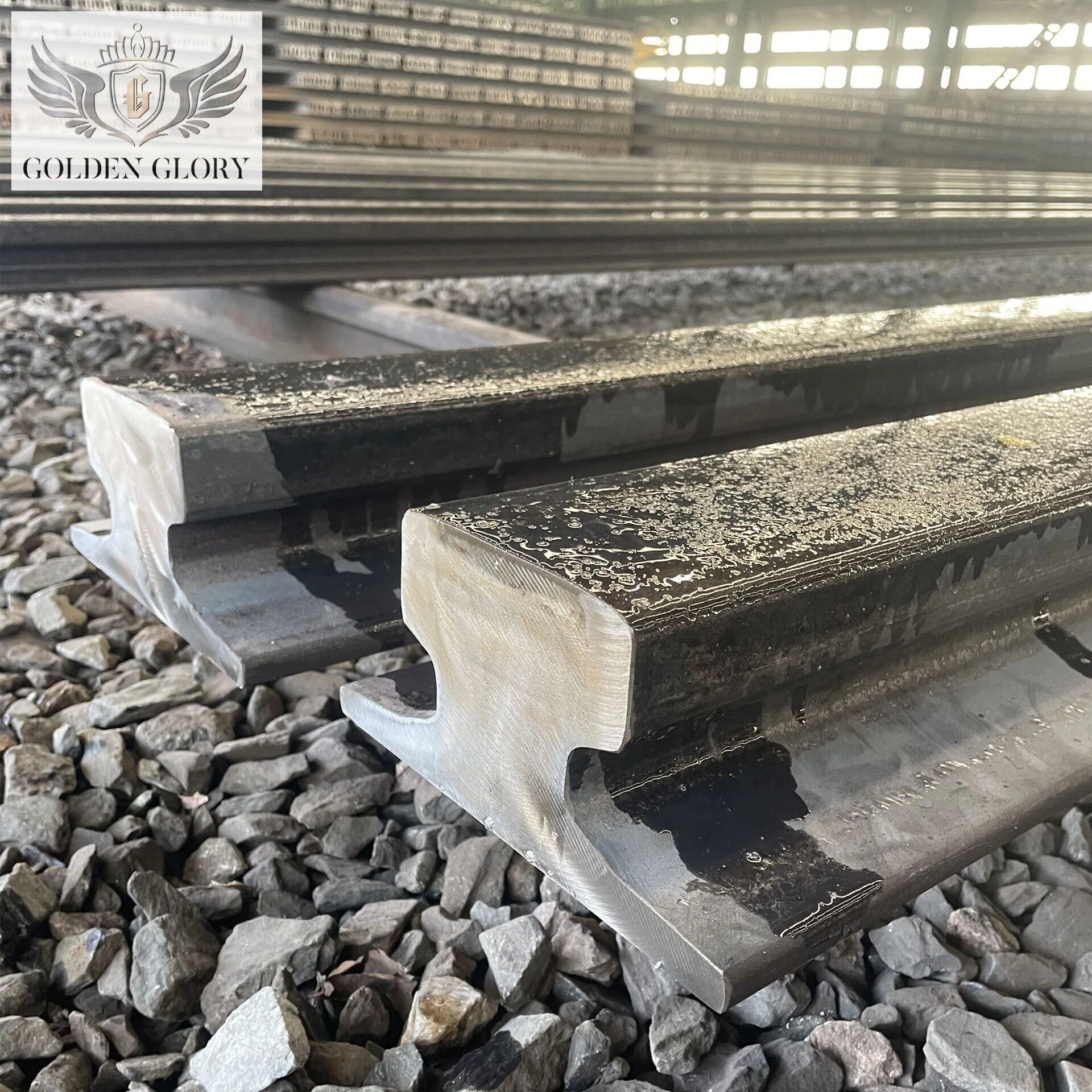

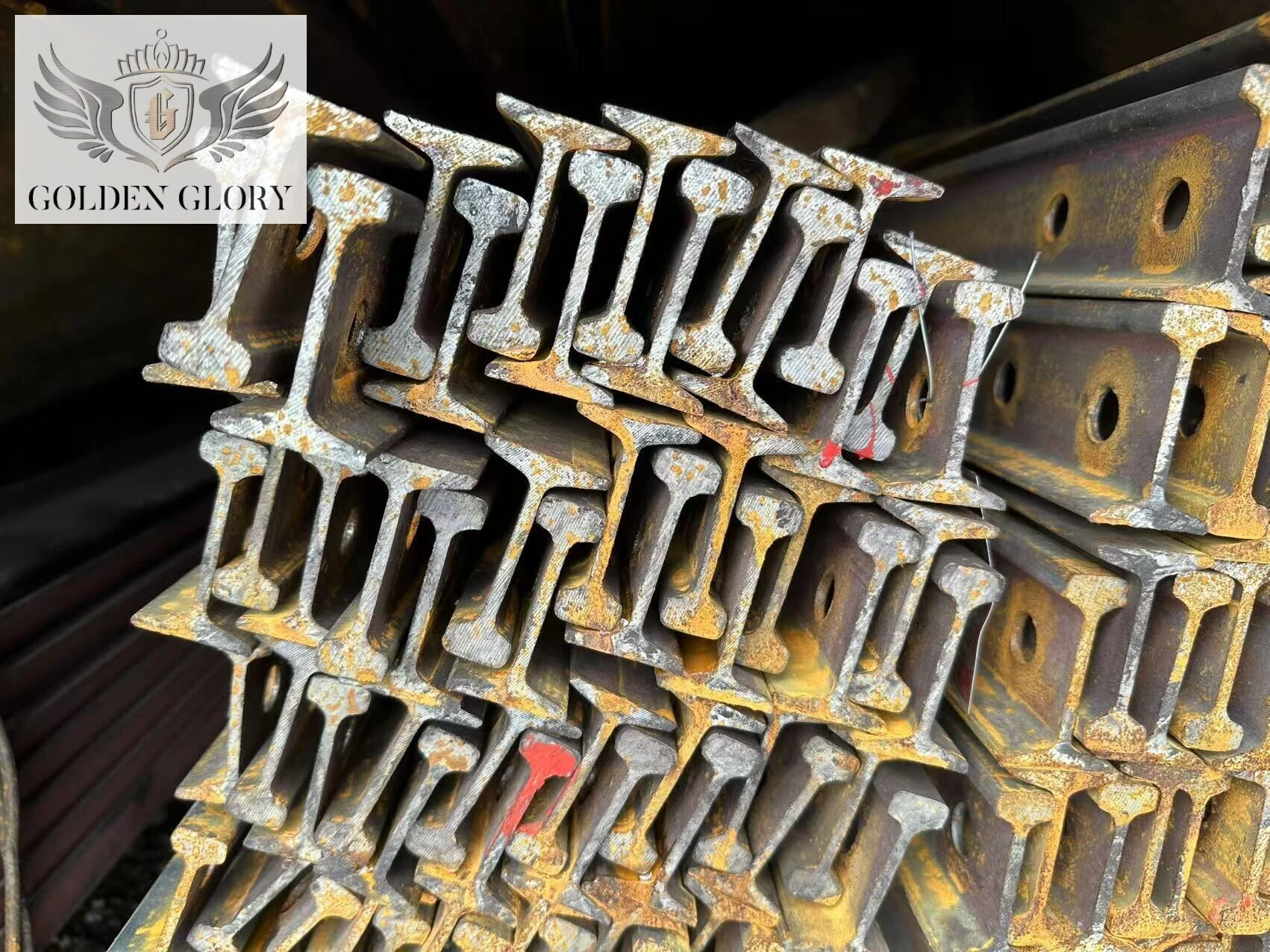

Q235 Q355 Type Railway Light Steel Rails
The steel rail, also know as rail track, railroad rail, is used to guide the train wheels far forwarding, by withstanding the enormous stress by the wheel when a train passes by, and transferring to the tie sleepers as well. The rail shall provide smooth and continuous rolling surface with least resistance. Generally speaking, the heavier the rails and the rest of the track work, the heavier and higher speed for the train these railroad tracks can carry. At electrified railway or automatic block sections, the railroad rail can also be used as the railroad track circuit.
+8619105410612
+8619105410612
+8619105410612
sales8@gloryeqgroup.com

Product Parameters

StandardSepc.Material Typical Grade
UIC860UIC54700,900A,900B
UIC60
EN13674.150E1R200,R350HT,R260Mn,R35LHT,R320Cr,R370CrHT
54E1
60E1
60E2
BS-11-1985BS80A700,900A,900B
BS90A
BS100A
AREMA115RESS,HH,LA,IH
136RE
ASCE60U71Mn
ASCE85U71Mn
GB 2585-200750kg/mU71Mn
U75V
60kg/m
75kg/m
TB/T2344-201250kg/mU71Mn,U75V,U77MnCr
U78CrV
60kg/m
75kg/m
GB 11264-19898kg/mQ235
12kg/mQ235
15kg/m55Q, Q235
18kg/m55Q, Q235
22kg/m55Q, Q235
24kg/m55Q, Q235
30kg/m55Q, Q235
38kg/m50Mn, U71Mn
43kg/m50Mn, U71Mn
GB Crane railsQU70U71Mn
QU80U71Mn
QU100U71Mn
QU120U71Mn


Standard: ASTMA1, AREMA
SizeDimension(mm)Weight
(kg/m)
MaterialLength (m)
Head(mm)Height(mm)Bottom(mm)Web(mm)
ASCE 2538.169.8569.857.5412.47006-12
ASCE 3042.8679.3879.388.3314.887006-12
ASCE 4047.6288.988.99.9219.847006-12
ASCE 6060.32107.95107.9512.329.767006-12
ASCE 7562.71122.24122.2413.4937.2900A/110012-25
ASCE 8565.09131.76131.7614.2942.17900A/110012-25
90RA65.09142.88130.1814.2944.65900A/110012-25
115RE69.06168.28139.715.8856.9900A/110012-25
136RE74.61185.74152.417.4667.41900A/110012-25
175LBs109.86152.4152.438.186.8900A/110012-25


Standard: BS11: 1985
SizeDimension(mm)Weight
(kg/m)
MaterialLength (m)
Head(mm)Height(mm)Bottom(mm)Web(mm)
50 O52.39100.01100.0110.3224.8337006-18
60 A57.15114.3109.5411.1130.618900A6-18
75 A61.91128.59114.312.737.455900A8-25
75 R61.91128.59122.2413.137.041900A8-25
80 A63.5133.35117.4713.139.761900A8-25
80 R63.5133.3512713.4939.674900A8-25
90 A66.67142.8812713.8945.099900A8-25
100 A69.85152.4133.3515.0850.182900A8-25
113 A69.85158.75139.72056.398900A8-25


Australian Standard Railway
standard:AS1085
SizeDimensionWeight (kg/m)Length
(m)
Material
Head(mm)Height(mm)Bottom(mm)Web(mm)
31KG63.5117.510811.531.58-25900A/1100
47KG70141.312714.346.5
50KG701541271550.8
60KG7017014616.561
68KG73.418615217.567.6
73KG701571463273.63
86KG10210215584.1185.5
89KG1021141785189.81

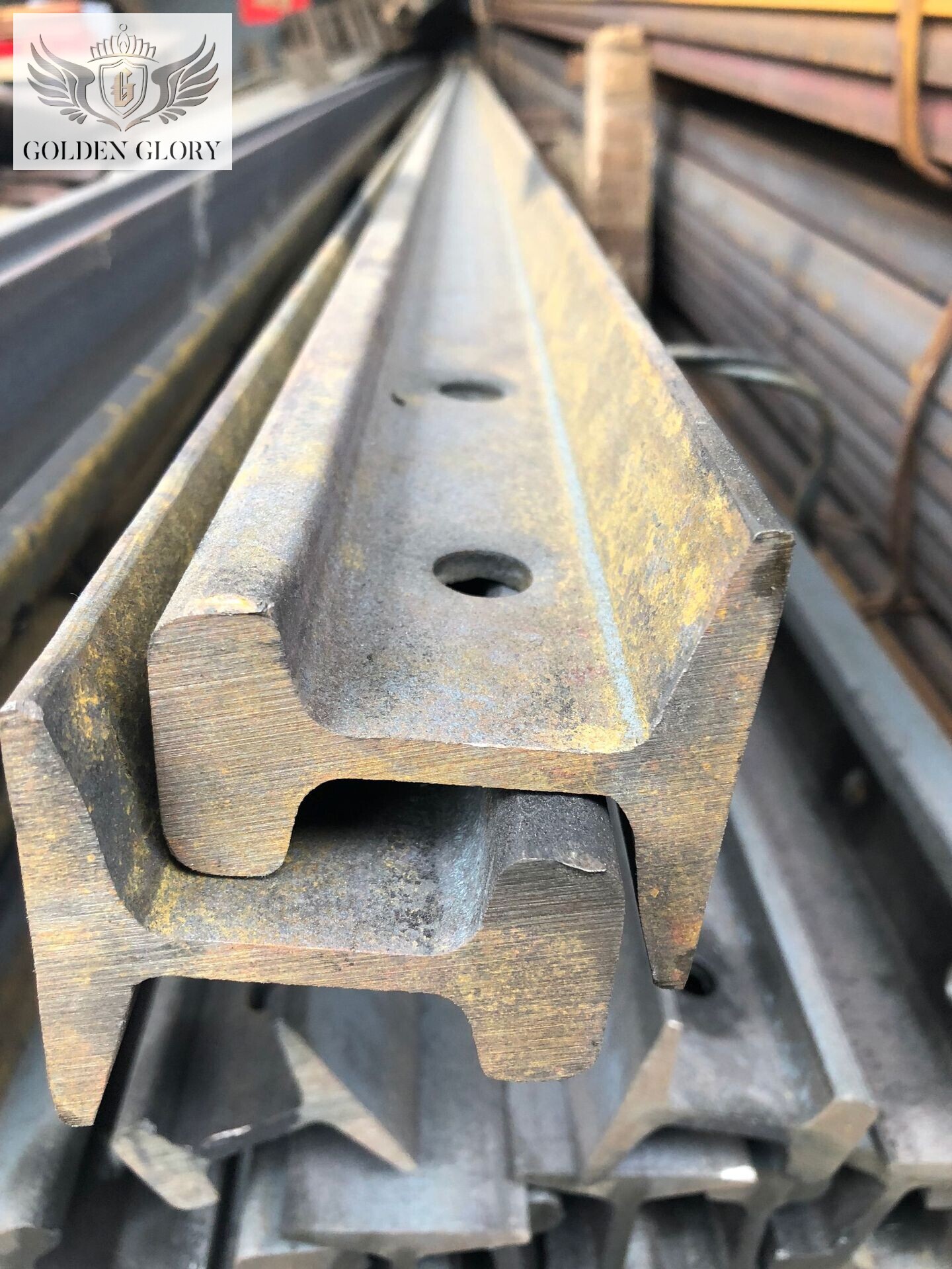

Product Display

下载 (11).jpg

Application

下载 (11).jpg

Package


Factory Display

  • 工厂 (7).jpeg
  • 工厂 (4).jpeg
  • 工厂 (3).jpg
  • 工厂 (1).png
  • 工厂 (1).jpg
  • 工厂 (8).jpeg

FAQ

Q: Are You Manufacture or Trade Company?

A: We are the professional manufacturer of stainless steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.

Q: How do you guarantee the quality?

A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?

A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
