Product Parameters
Standard | Sepc. | Material Typical Grade |
UIC860 | UIC54 | 700,900A,900B |
UIC60 | ||
EN13674.1 | 50E1 | R200,R350HT,R260Mn,R35LHT,R320Cr,R370CrHT |
54E1 | ||
60E1 | ||
60E2 | ||
BS-11-1985 | BS80A | 700,900A,900B |
BS90A | ||
BS100A | ||
AREMA | 115RE | SS,HH,LA,IH |
136RE | ||
ASCE60 | U71Mn | |
ASCE85 | U71Mn | |
GB 2585-2007 | 50kg/m | U71Mn U75V |
60kg/m | ||
75kg/m | ||
TB/T2344-2012 | 50kg/m | U71Mn,U75V,U77MnCr U78CrV |
60kg/m | ||
75kg/m | ||
GB 11264-1989 | 8kg/m | Q235 |
12kg/m | Q235 | |
15kg/m | 55Q, Q235 | |
18kg/m | 55Q, Q235 | |
22kg/m | 55Q, Q235 | |
24kg/m | 55Q, Q235 | |
30kg/m | 55Q, Q235 | |
38kg/m | 50Mn, U71Mn | |
43kg/m | 50Mn, U71Mn | |
GB Crane rails | QU70 | U71Mn |
QU80 | U71Mn | |
QU100 | U71Mn | |
QU120 | U71Mn |
Standard: ASTMA1, AREMA | |||||||
Size | Dimension(mm) | Weight (kg/m) | Material | Length (m) | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
ASCE 25 | 38.1 | 69.85 | 69.85 | 7.54 | 12.4 | 700 | 6-12 |
ASCE 30 | 42.86 | 79.38 | 79.38 | 8.33 | 14.88 | 700 | 6-12 |
ASCE 40 | 47.62 | 88.9 | 88.9 | 9.92 | 19.84 | 700 | 6-12 |
ASCE 60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 | 700 | 6-12 |
ASCE 75 | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | 900A/1100 | 12-25 |
ASCE 85 | 65.09 | 131.76 | 131.76 | 14.29 | 42.17 | 900A/1100 | 12-25 |
90RA | 65.09 | 142.88 | 130.18 | 14.29 | 44.65 | 900A/1100 | 12-25 |
115RE | 69.06 | 168.28 | 139.7 | 15.88 | 56.9 | 900A/1100 | 12-25 |
136RE | 74.61 | 185.74 | 152.4 | 17.46 | 67.41 | 900A/1100 | 12-25 |
175LBs | 109.86 | 152.4 | 152.4 | 38.1 | 86.8 | 900A/1100 | 12-25 |
Standard: BS11: 1985 | |||||||
Size | Dimension(mm) | Weight (kg/m) | Material | Length (m) | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
50 O | 52.39 | 100.01 | 100.01 | 10.32 | 24.833 | 700 | 6-18 |
60 A | 57.15 | 114.3 | 109.54 | 11.11 | 30.618 | 900A | 6-18 |
75 A | 61.91 | 128.59 | 114.3 | 12.7 | 37.455 | 900A | 8-25 |
75 R | 61.91 | 128.59 | 122.24 | 13.1 | 37.041 | 900A | 8-25 |
80 A | 63.5 | 133.35 | 117.47 | 13.1 | 39.761 | 900A | 8-25 |
80 R | 63.5 | 133.35 | 127 | 13.49 | 39.674 | 900A | 8-25 |
90 A | 66.67 | 142.88 | 127 | 13.89 | 45.099 | 900A | 8-25 |
100 A | 69.85 | 152.4 | 133.35 | 15.08 | 50.182 | 900A | 8-25 |
113 A | 69.85 | 158.75 | 139.7 | 20 | 56.398 | 900A | 8-25 |
Australian Standard Railway | |||||||
standard:AS1085 | |||||||
Size | Dimension | Weight (kg/m) | Length (m) | Material | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
31KG | 63.5 | 117.5 | 108 | 11.5 | 31.5 | 8-25 | 900A/1100 |
47KG | 70 | 141.3 | 127 | 14.3 | 46.5 | ||
50KG | 70 | 154 | 127 | 15 | 50.8 | ||
60KG | 70 | 170 | 146 | 16.5 | 61 | ||
68KG | 73.4 | 186 | 152 | 17.5 | 67.6 | ||
73KG | 70 | 157 | 146 | 32 | 73.63 | ||
86KG | 102 | 102 | 155 | 84.11 | 85.5 | ||
89KG | 102 | 114 | 178 | 51 | 89.81 |

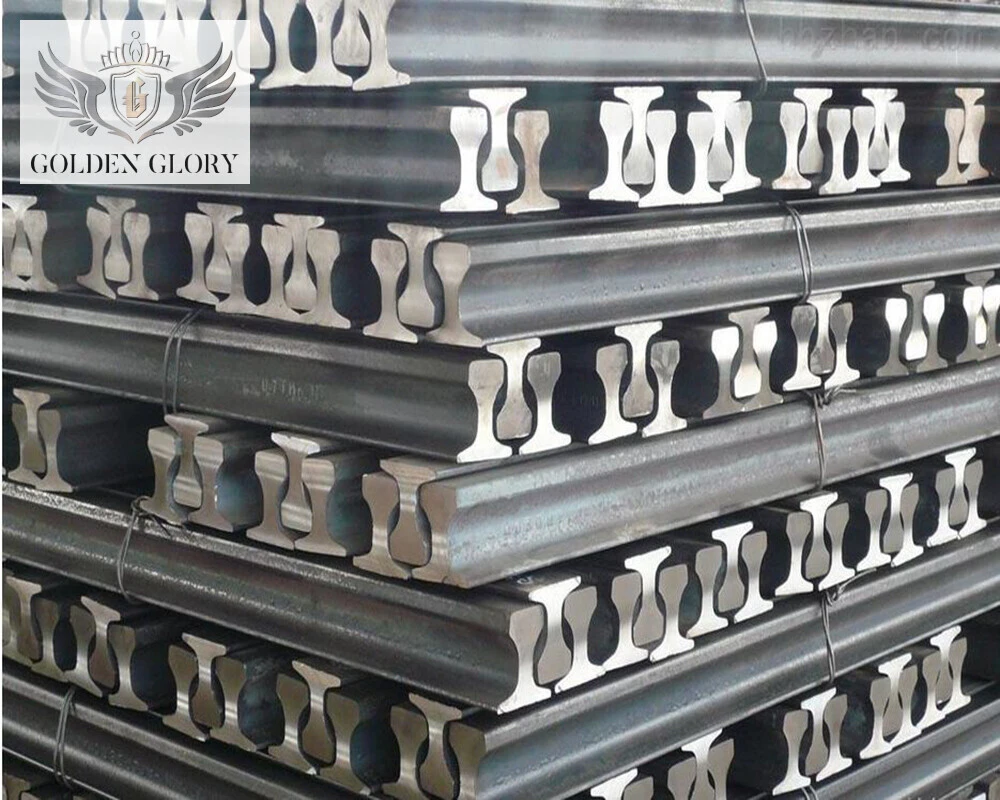

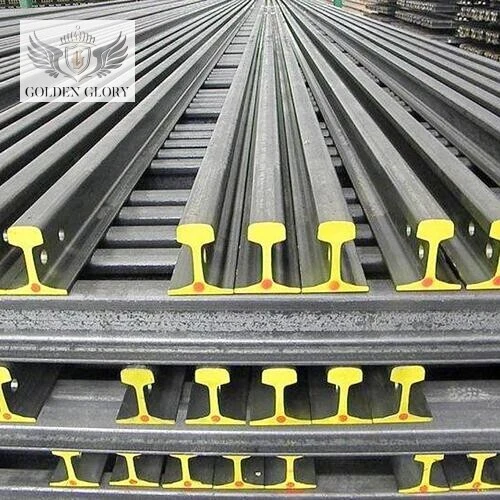

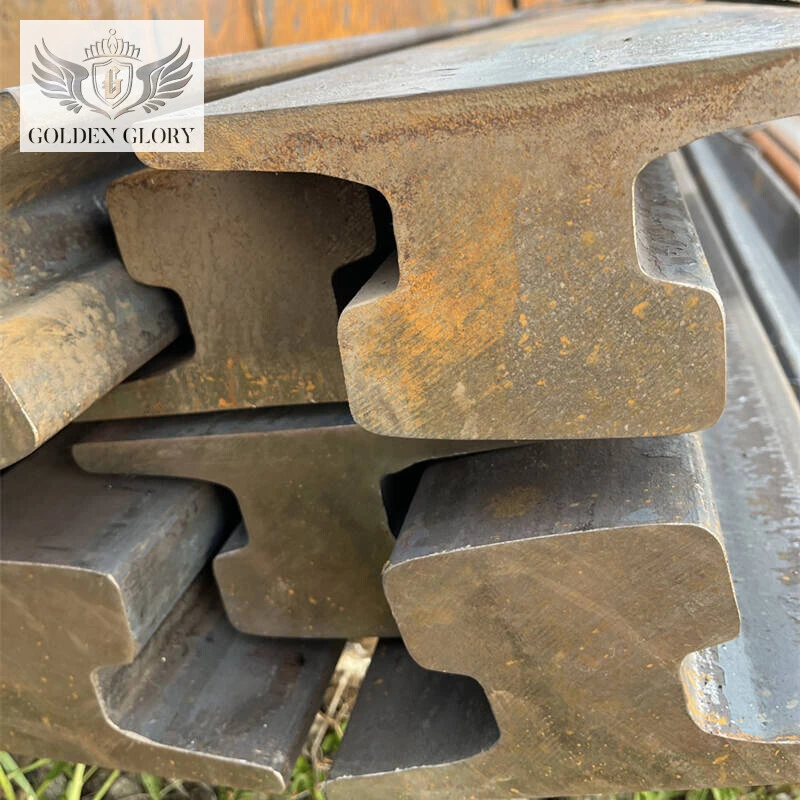

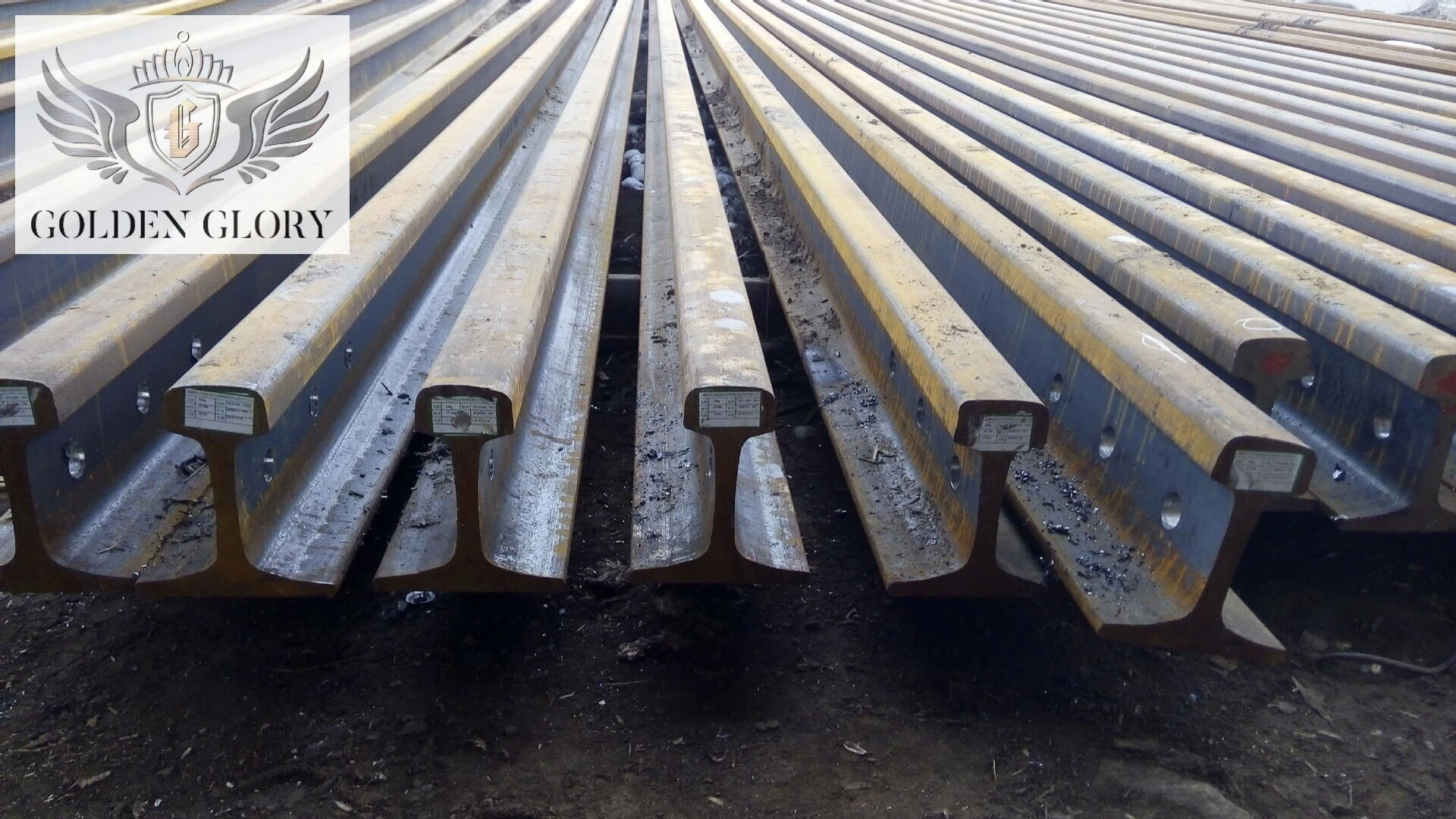

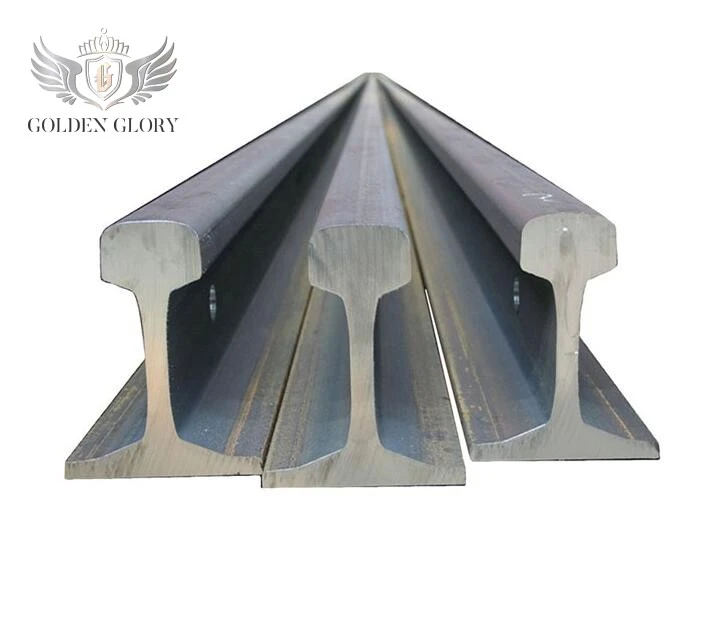

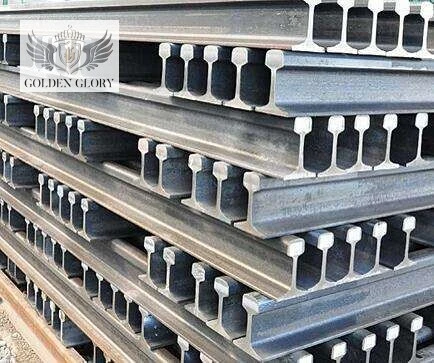

Product Display

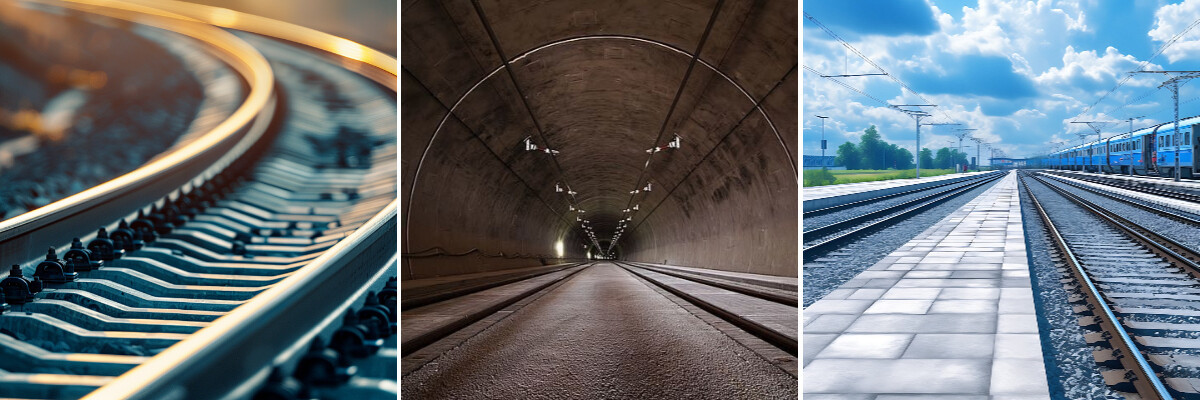

Application
Package

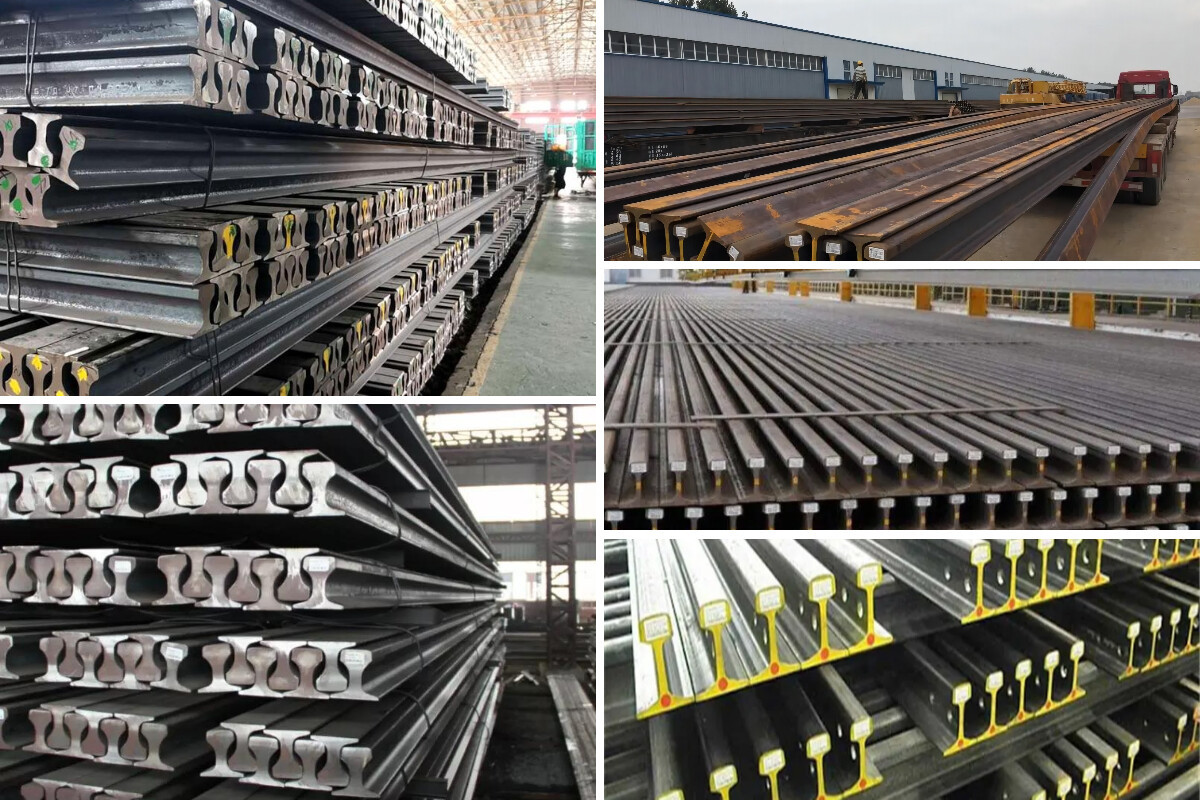

Factory Display
FAQ
Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of stainless steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
